Datum AL32
⟨ Optical Levels / Dumpy Levels

Datum AL32 - Automatic Optical Level

DAL32
£125.00
  • 1

  • 2

  • 3

  • 4

  • 5

  • (0)

Rating of 0 stars, based on 0 reviews

In Stock, ready to ship
Customise & Buy

You might also need...

Total: £125.00
  • Overview
  • Specifications
  • What’s Included
  • Downloads
  • Q&A’s
  • Reviews
AL32
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.
Datum AL32 Automatic Level is the ideal engineer's levelling instrument, featuring a built in 360 degree circle to help set out angles.

- Overview

Product Info

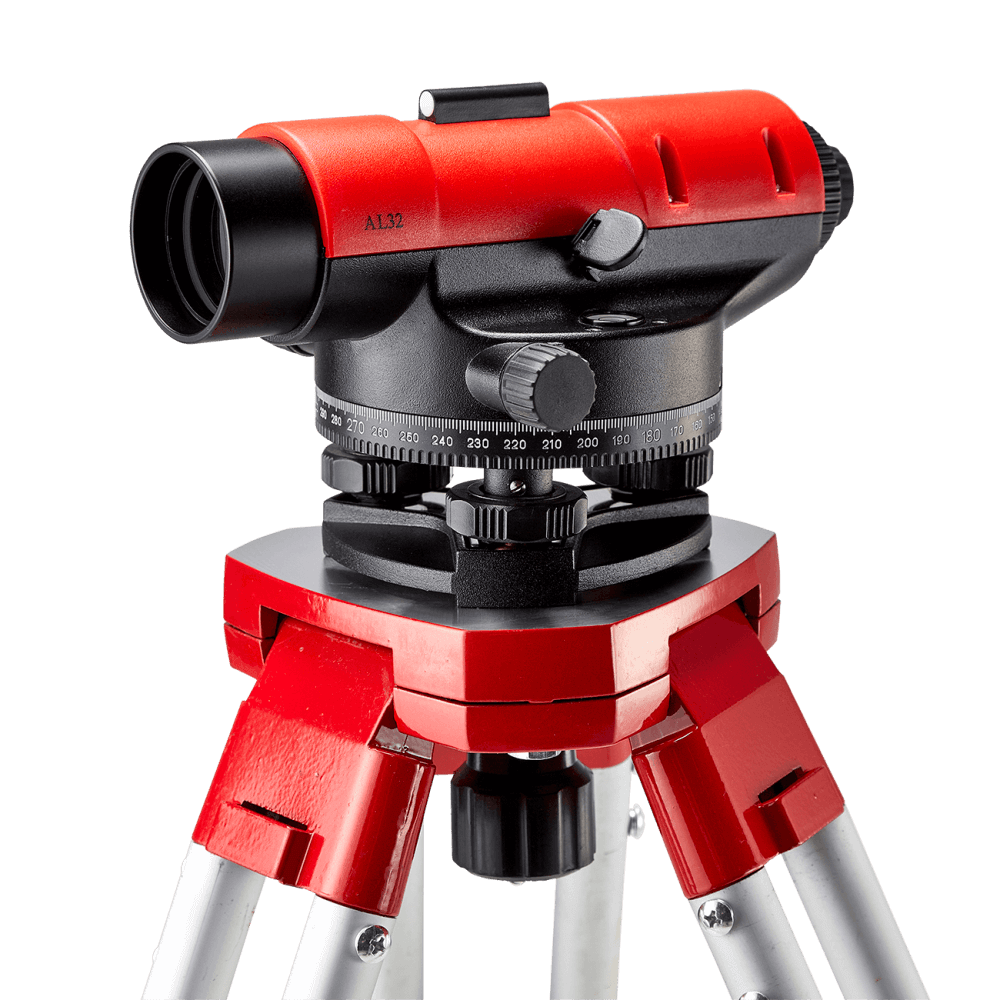

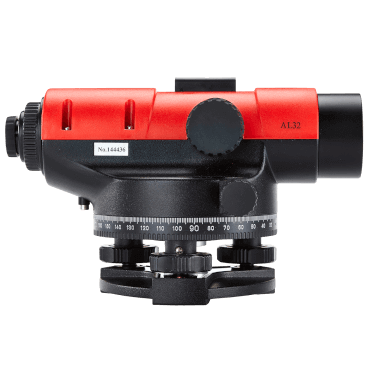

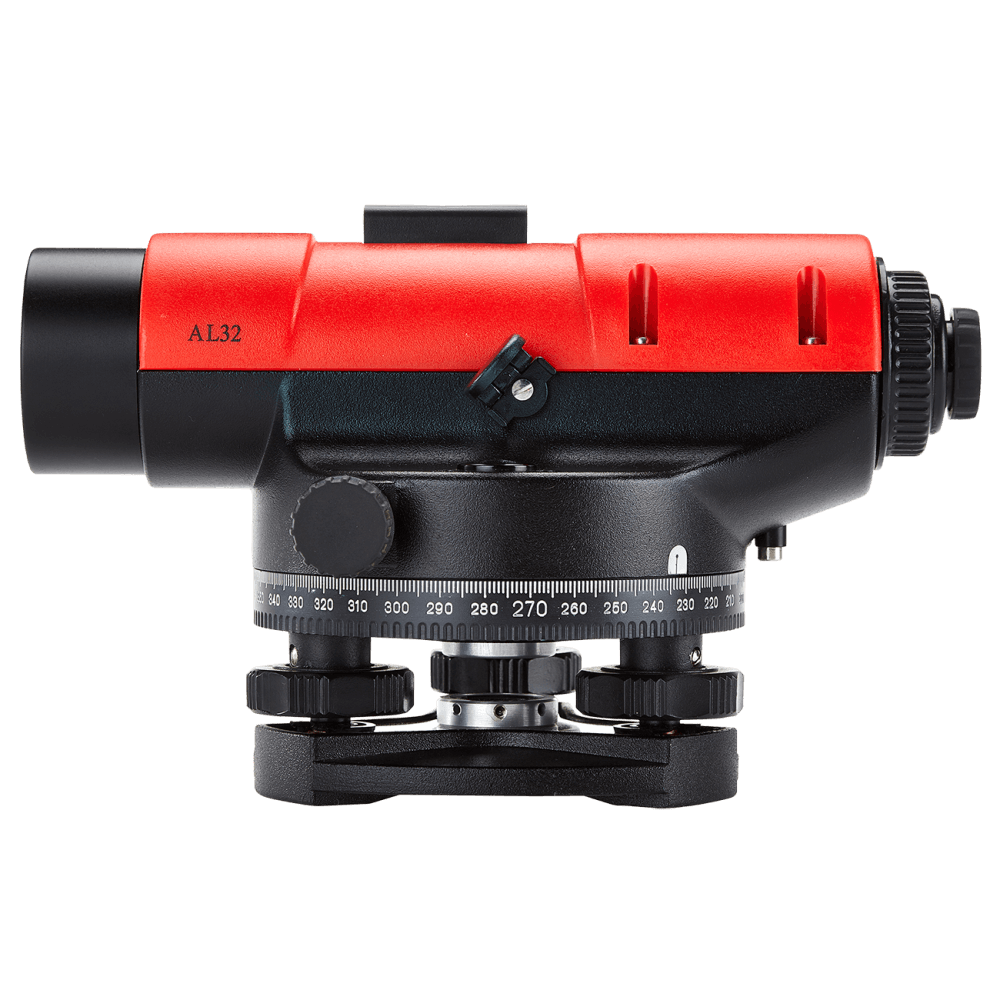

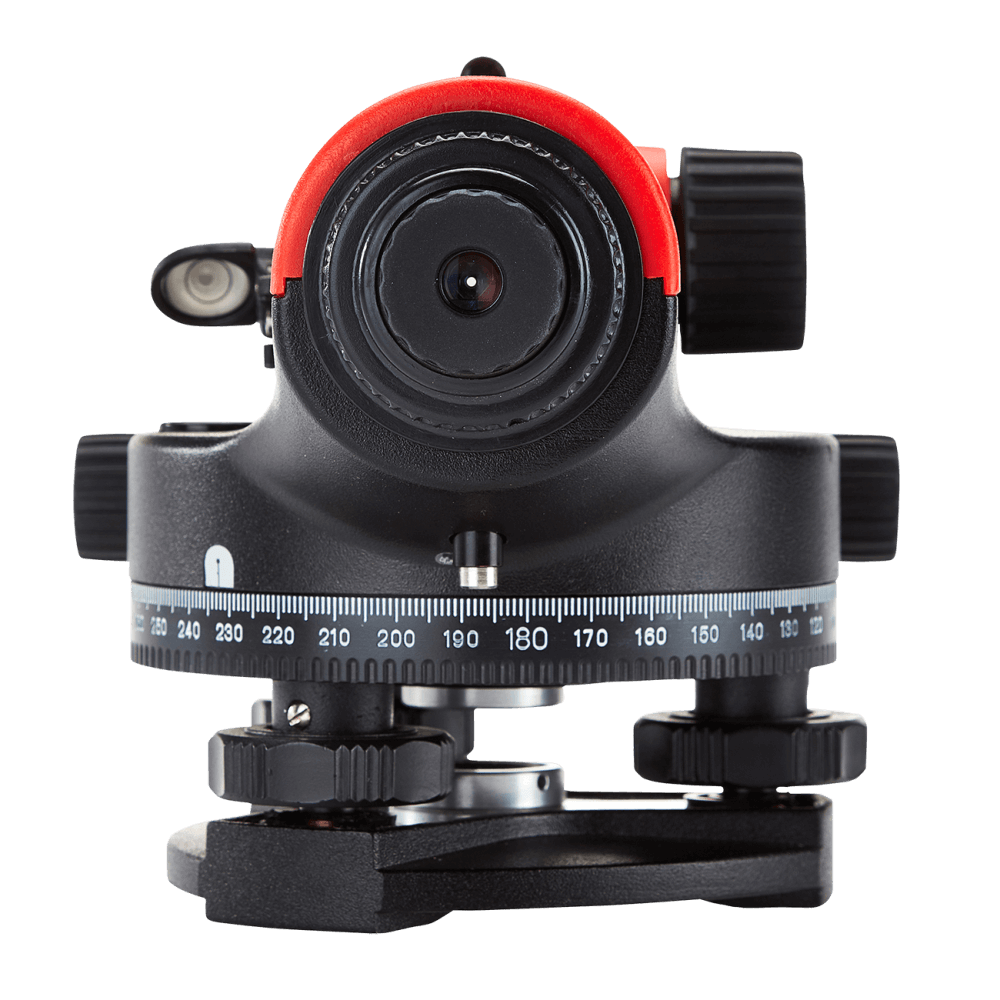

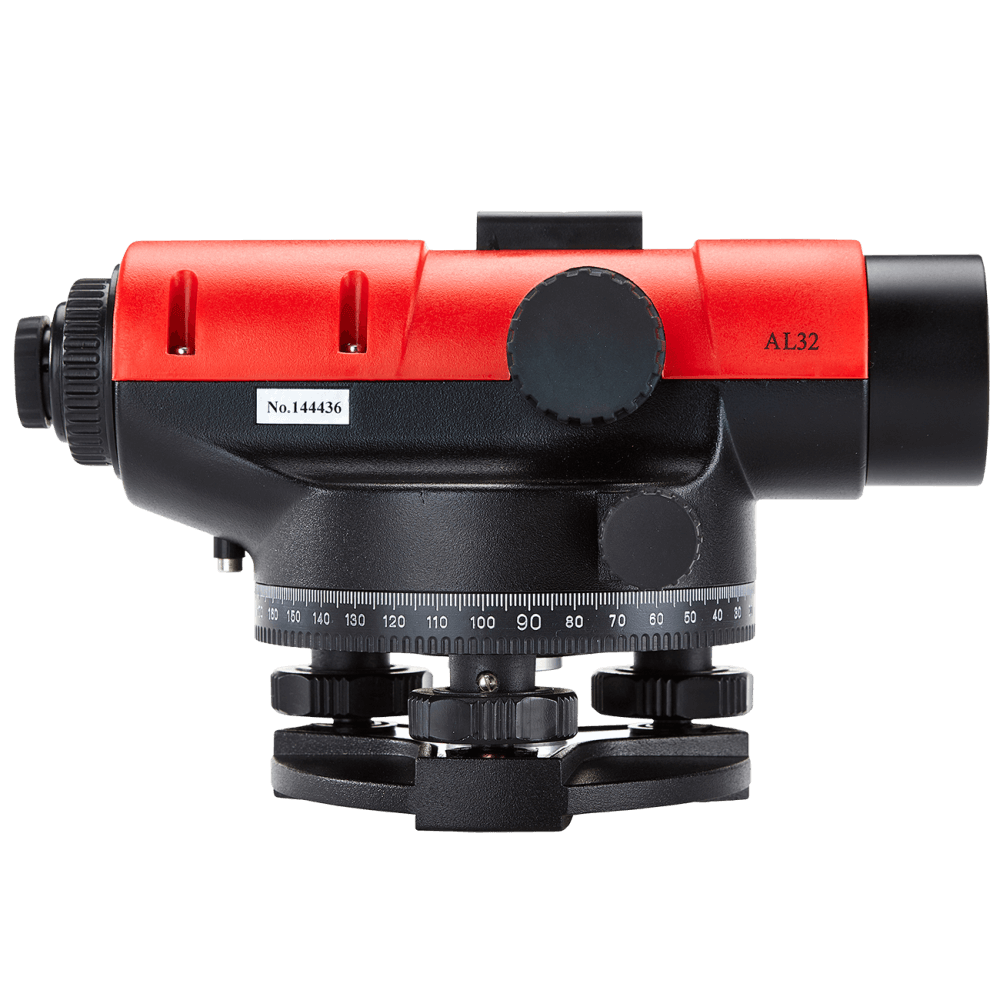

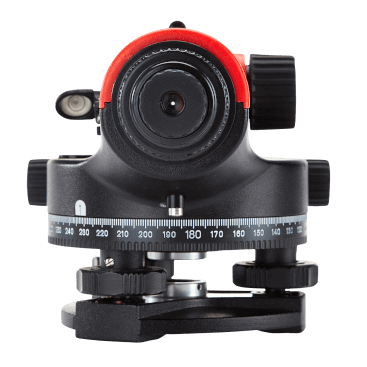

The Datum AL32 is the ideal automatic optical level with the general Builder through to the Civil Engineer in mind.

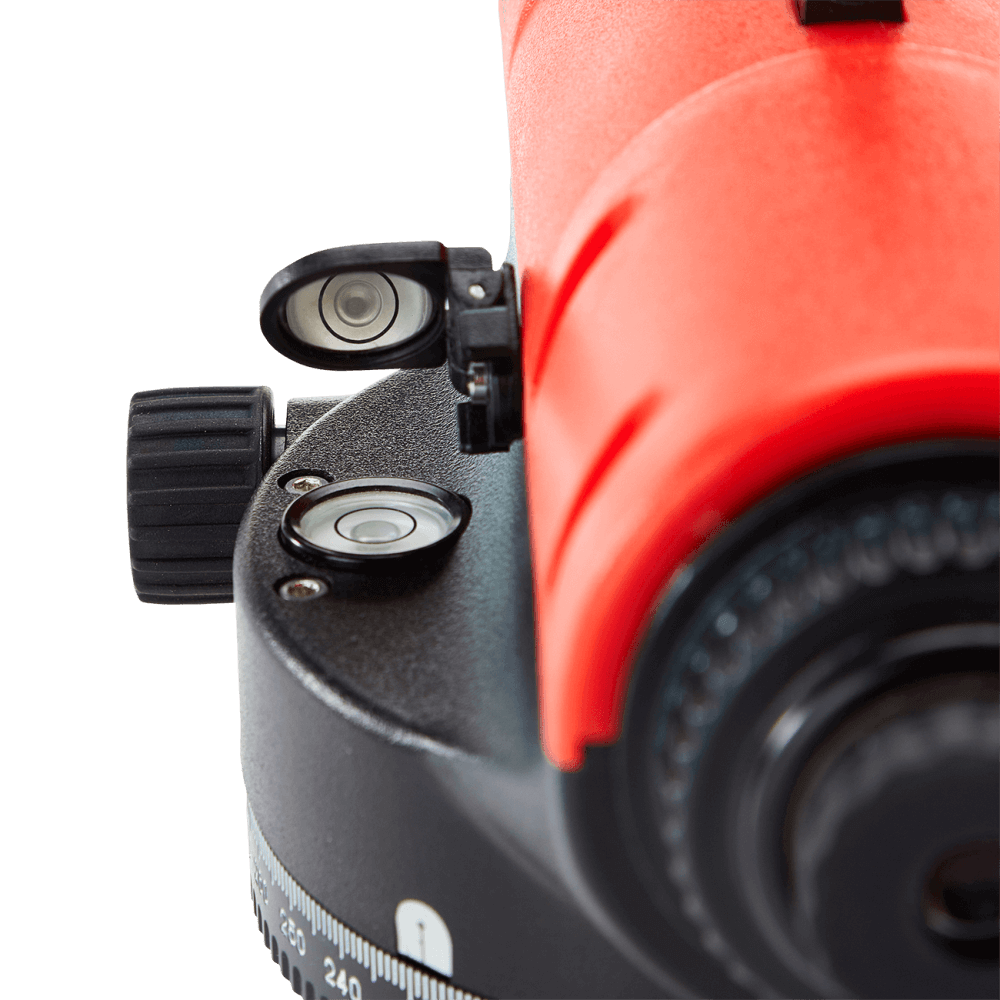

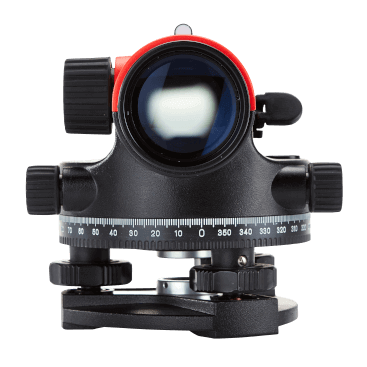

Featuring a built-in 360º circle to help set out angles, as well as a compensator function check button, the user can quickly and easily check the AL32 Optical Level’s accuracy at a touch of a button.

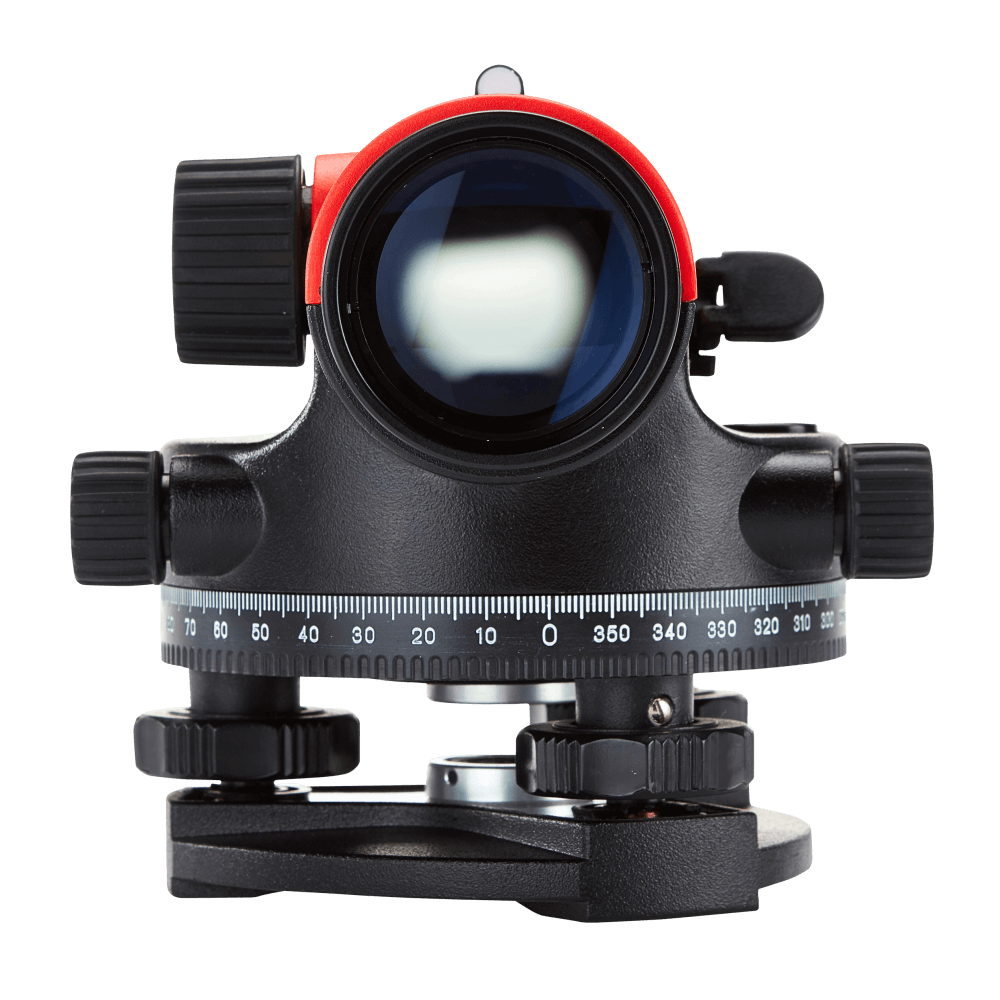

The Datum AL32 offers the user a wide angle and clear views of the Level Staff via its crystal clear optics and 32x optical magnification.

This trade favourite instrument delivers an accuracy rating of +/-1.0mm standard deviation over a 1km level run of levelling.

The Datum AL32 carries a 5 year RTB Warranty.

- Specifications

Technical Data

Accuracy (per double km run) ±1.0mm
Magnification 32x
Telescope Erect
Objective Aperture 40mm
Focusing Distance From 0.5m
Multiplication Factor 100
Additive Factor 0
Waterproof Yes
Working Range ±15'
Setting Accuracy ±0.3"

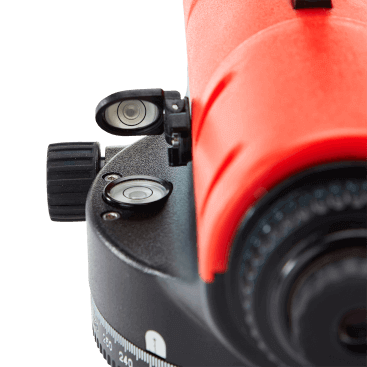

Bubble Sensitivity 8' / 2mm
Circle Graduation 1 Degree
Weight 1.3kg
Warranty* 5 Year RTB

- What’s Included

Items

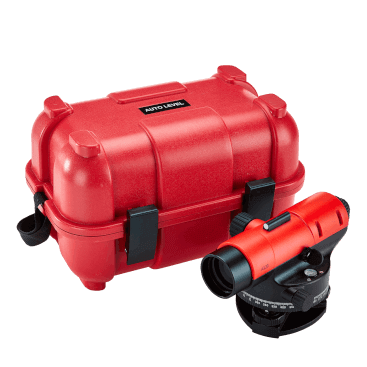

The Datum AL32 Optical Level kit includes:

  • Datum AL32 Automatic Optical Level
  • ABS Moulded Carry Case
  • User Manual

- Downloads

Data Sheets
Datum AL32 Spec Sheet

- Q&A

What is an Optical Level?
  • An optical level is a tool which is usually used in surveying and building / construction sites. It is used to check or establish points at the same horizontal plane. Optical levels are also known as a dumpy level or auto level. An optical level works on a compensator mechanism that consists of a swinging prism. This tool is mostly preferred by builders, survey professionals and contractors because of the ease of use and quick setup feature.
Can I set out a 90 degree angle using a Datum AL32 Level?
  • Yes, the AL32 Optical Level has a 360 degree circle for setting out any angle required.

Got a question of your own?

Ask our experts, we’ll do our best to get an answer to you by email as soon as we can.

Ask a question
Product Reviews

Be the first to write a review.
